Metric Miniature Ball Bearings

The following is about Metric Miniature Ball Bearings related, I hope to help you better understand Metric Miniature Ball Bearings.

Send Inquiry

Product Description

Metric Ball Bearings-1.jpg

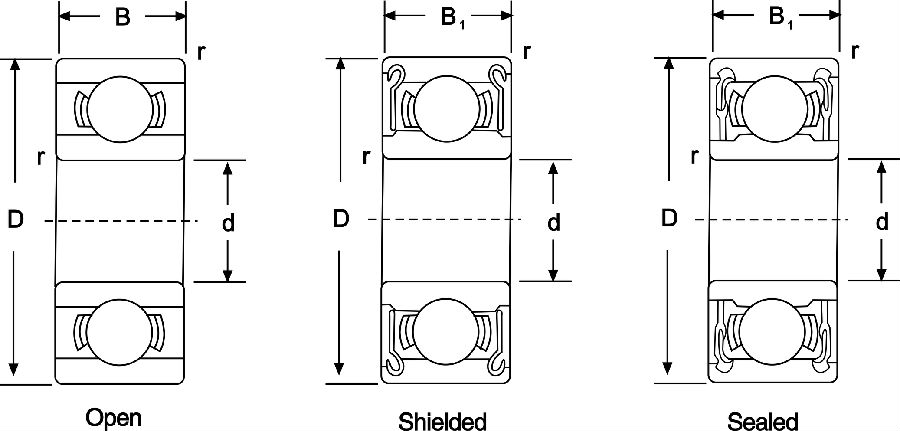

Overall dimension(mm)					Bearing No.			Load rating(N)		Limiting speeds(rpm)
d	D	B	B1	rsmin	Open	Shielded	Sealed	Cr	Cor	Grease	Oil
3	8	3	4	0.15	693	693ZZ	/	560	179	60000	67000
	9	3	5	0.15	603	603ZZ	/	570	187	56000	67000
	10	4	4	0.15	623	623ZZ	623-2RS	630	218	50000	60000
	13	5	5	0.2	633	633ZZ	633-2RS	1300	485	40000	48000
4	9	2.5	4	0.1	684	684ZZ	684-2RS	640	225	53000	63000
	11	4	4	0.15	694	694ZZ	694-2RS	960	345	48000	56000
	12	4	4	0.15	604	604ZZ	604-2RS	960	345	48000	56000
	13	5	5	0.2	624	624ZZ	624-2RS	1300	485	40000	48000
	16	5	5	0.3	634	634ZZ	634-2RS	1730	670	36000	43000
5	11	3	5	0.15	685	685ZZ	/	715	281	45000	53000
	13	4	4	0.2	695	695ZZ	695-2RS	1080	430	43000	50000
	14	5	5	0.2	605	605ZZ	605-2RS	1090	440	40000	50000
	16	5	5	0.3	625	625ZZ	625-2RS	1730	670	36000	43000
	19	6	6	0.3	635	635ZZ	635-2RS	2340	885	32000	40000
6	13	3.5	5	0.15	686	686ZZ	686-2RS	1080	440	40000	50000
	15	5	5	0.2	696	696ZZ	696-2RS	1730	670	40000	50000
	17	6	6	0.3	606	606ZZ	606-2RS	1970	735	38000	45000
	19	6	6	0.3	626	626ZZ	626-2RS	2340	885	32000	40000
	22	7	7	0.3	636	636ZZ	636-2RS	3300	1370	30000	36000
7	14	3.5	5	0.15	687	687ZZ	687-2RS	1170	510	40000	45000
	17	5	5	0.3	697	697ZZ	697-2RS	1610	710	36000	43000
	19	6	6	0.3	607	607ZZ	607-2RS	2340	885	36000	43000
	22	7	7	0.3	627	627ZZ	627-2RS	3300	1370	30000	36000
	26	9	9	0.3	637	637ZZ	637-2RS	4560	1980	28000	48000
8	16	4	5	0.2	688	688ZZ	688-2RS	1610	710	36000	43000
	19	6	6	0.3	698	698ZZ	698-2RS	2240	910	36000	43000
	22	7	7	0.3	608	608ZZ	608-2RS	3300	1370	34000	40000
	24	8	8	0.3	628	628ZZ	628-2RS	3350	1430	28000	34000
	28	9	9	0.3	638	638ZZ	638-2RS	4550	1970	28000	34000
9	17	4	5	0.2	689	689ZZ	689-2RS	1330	665	36000	43000
	20	6	6	0.3	699	699ZZ	699-2RS	2850	1090	34000	40000
	24	7	7	0.3	609	609ZZ	609-2RS	3350	1430	32000	38000
	26	8	8	0.3	629	629ZZ	629-2RS	4550	1970	28000	34000
	30	10	10	0.6	639	639ZZ	639-2RS	5100	2390	24000	30000
10	26	8	8	0.3	6000	6000ZZ	6000-2RS	4550	1970	30000	36000
	30	9	9	0.6	6200	6200ZZ	6200-2RS	5100	2390	24000	30000
	35	11	11	0.6	6300	6300ZZ	6300-2RS	8100	3450	22000	26000
12	28	7	7	0.3	16001	16001ZZ	16001-2RS	5100	2370	28000	32000
	28	8	8	0.3	6001	6001ZZ	6001-2RS	5100	2370	28000	32000
	32	10	10	0.6	6201	6201ZZ	6201-2RS	6800	3050	22000	28000
	37	12	12	1.0	6301	6301ZZ	6301-2RS	9700	4200	20000	24000
15	32	8	8	0.3	16002	16002ZZ	16002-2RS	5600	2830	24000	28000
	32	9	9	0.3	6002	6002ZZ	6002-2RS	5600	2830	24000	28000
	35	11	11	0.6	6202	6202ZZ	6202-2RS	7650	3750	20000	24000
	42	13	13	1.0	6302	6302ZZ	6302-2RS	11400	5450	17000	20000
17	35	8	8	0.3	16003	16003ZZ	16003-2RS	6000	3250	22000	26000
	35	10	10	0.3	6003	6003ZZ	6003-2RS	6000	3250	22000	26000
	40	12	12	0.6	6203	6203ZZ	6203-2RS	9550	4800	17000	20000
	47	14	1.0	1.0	6303	6303ZZ	6303-2RS	13600	6650	15000	18000
20	42	8	8	0.3	16004	16004ZZ	16004-2RS	7900	4450	18000	20000
	42	12	12	0.6	6004	6004ZZ	6004-2RS	9400	5000	18000	20000
	47	14	14	1.0	6204	6204ZZ	6204-2RS	12800	6600	15000	18000
	52	15	15	1.1	6304	6304ZZ	6304-2RS	15900	7900	14000	17000

Rihoo Industry is one of the outstanding Miniature Deep Groove Ball Bearings manufacturers and suppliers in China, welcome to buy and wholesale customized bulk metric miniature ball bearings made in China in stock from us.
